Bioclear Black Triangle Procedural Kit - Matrix System for Anterior Black Triangles

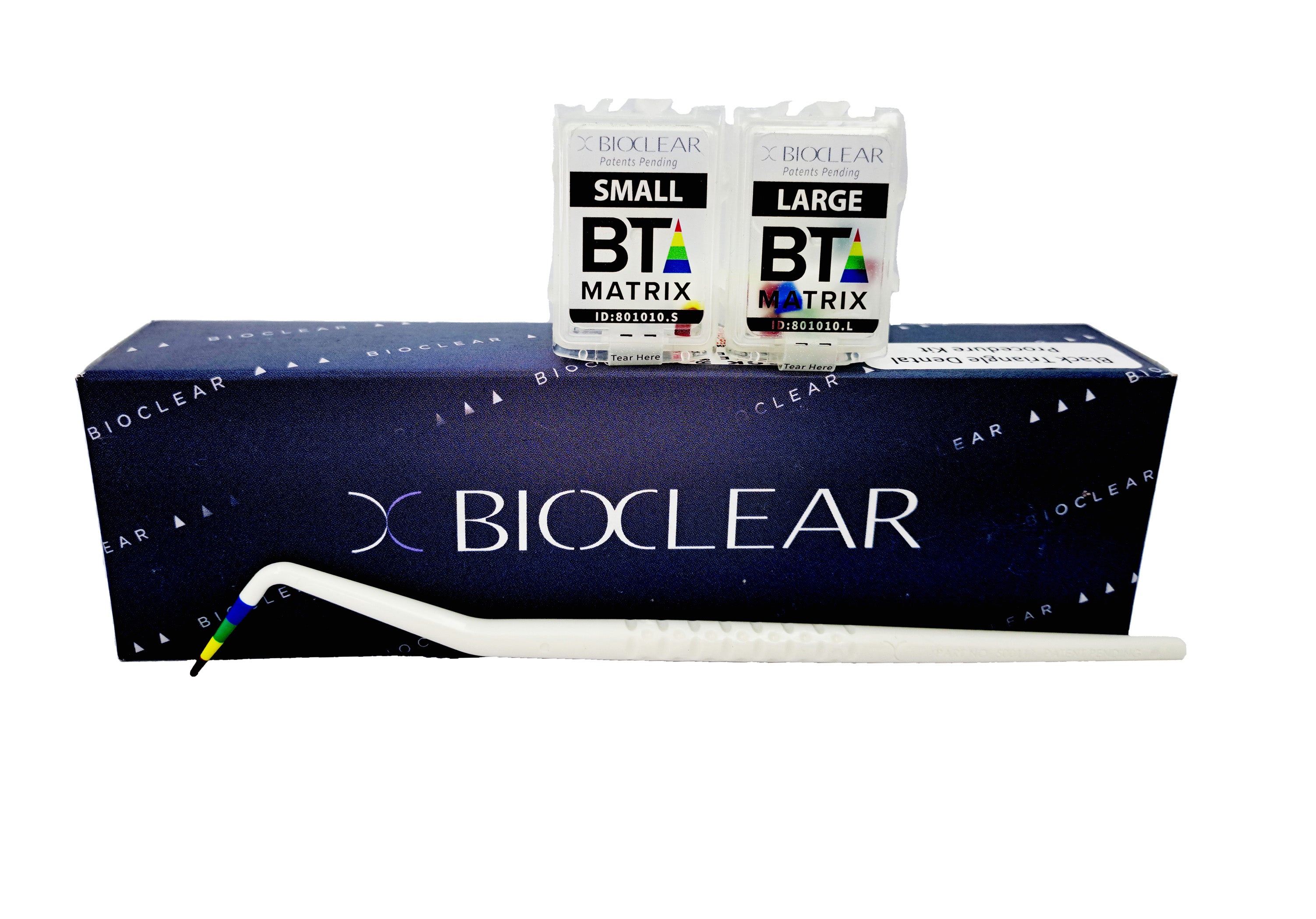

Black Triangle (BT) Procedural Kit

Bioclear is pleased to introduce the Black Triangle System, a new matrix system that enables black triangle closure up to 40% faster* than with the original Bioclear matrices.

Black Triangle matrices are custom-designed for black triangle treatment and require no trimming before seating.

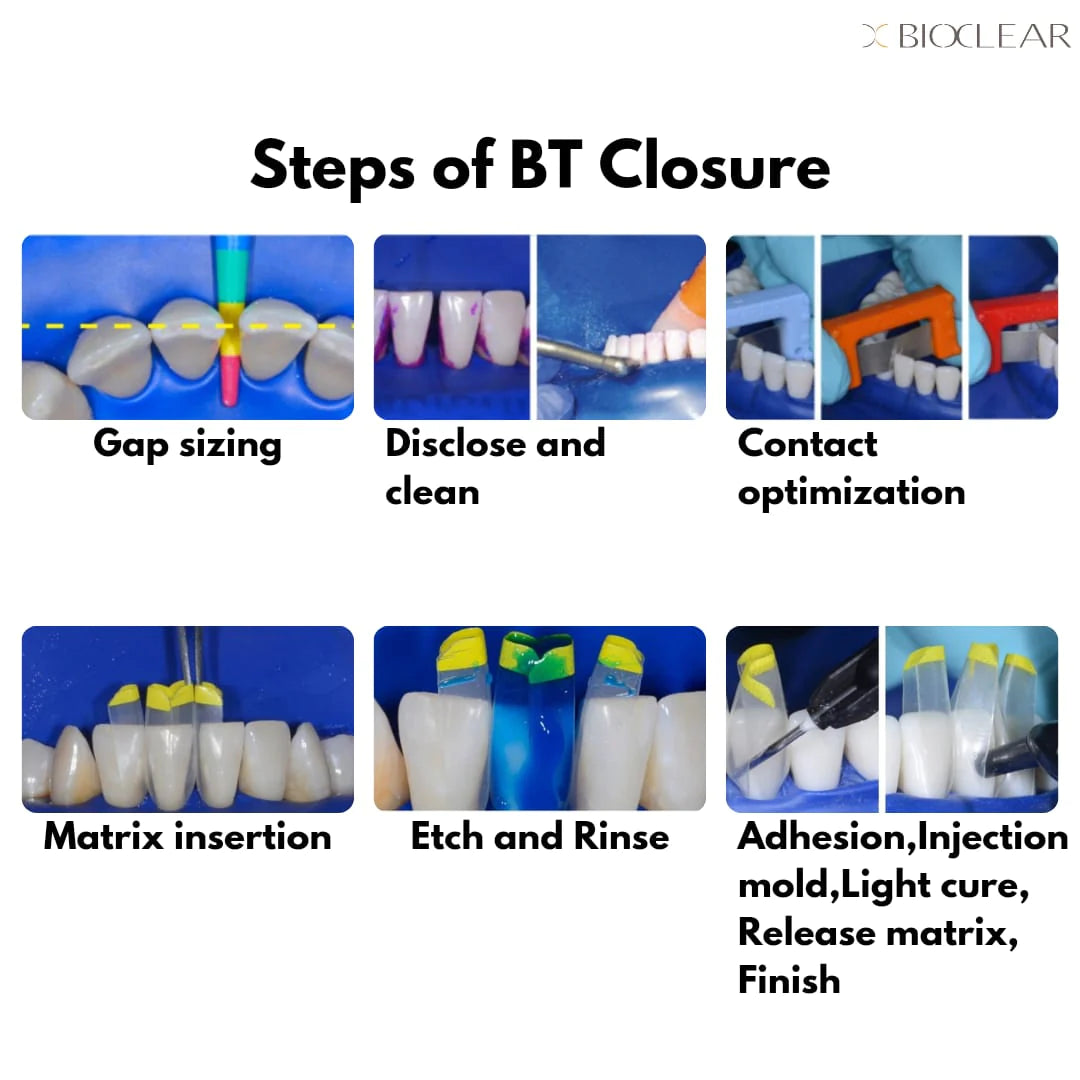

A colour-coded gauge and matrices make choosing the correct curvature for gingival embrasure closure simple and predictable. Curvature is indicated by colours at the top of the matrix and corresponds with a gauge that, when inserted into the black triangle, indicates which curvature to use.

The matrices come in two sizes (large incisor and small incisor) and four curvatures allowing you to treat the entire anterior sextant, canine to canine and both upper and lower arches with strong aesthetically pleasing results.

Black triangle Matrices

Using paired matrices, curvature (indicated by colour) closes spaces up to:

Pink – 1 mm space
Yellow – 1.5 mm space
Green – 2 mm space
Blue – 2.5 mm space

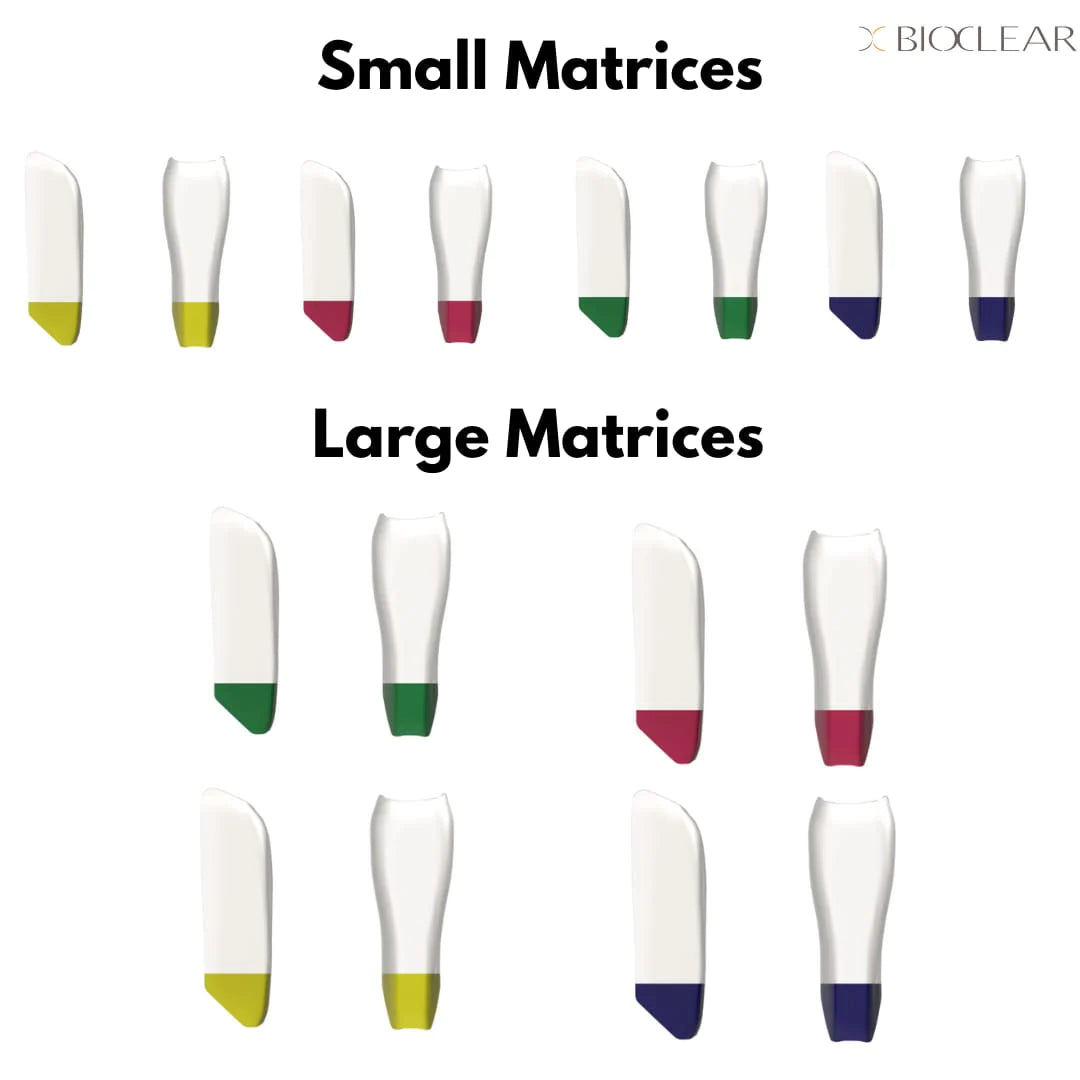

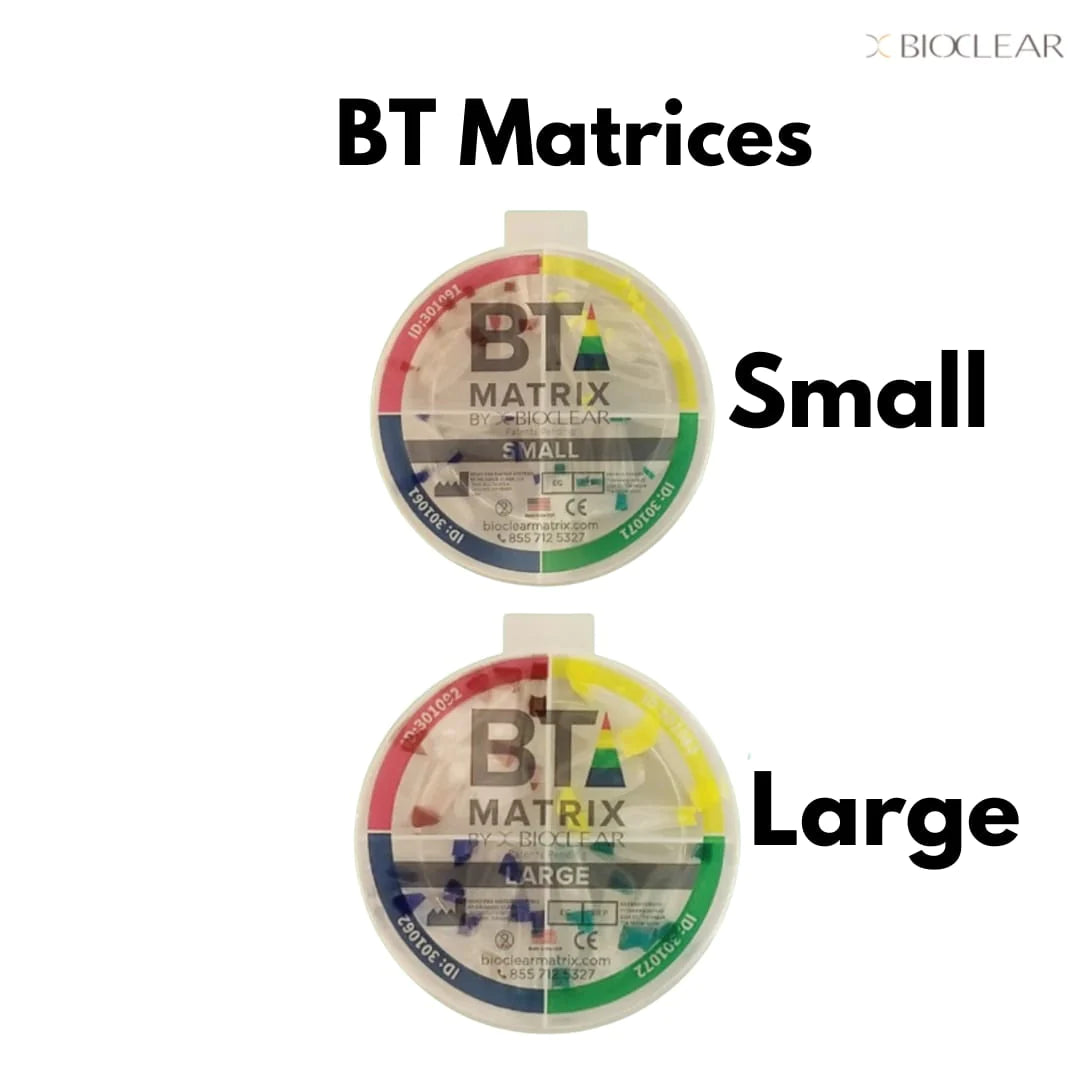

1.        Small Incisor BT Matrix Tub: For mandibular incisors and small maxillary lateral incisors

2.        Large Incisor BT Matrix Tub: These are taller and wrap the tooth more than the Small Incisor BT Matrices. They should be used for maxillary central Incisors, large maxillary lateral incisors, maxillary and mandibular canines, and maxillary and mandibular bicuspids.

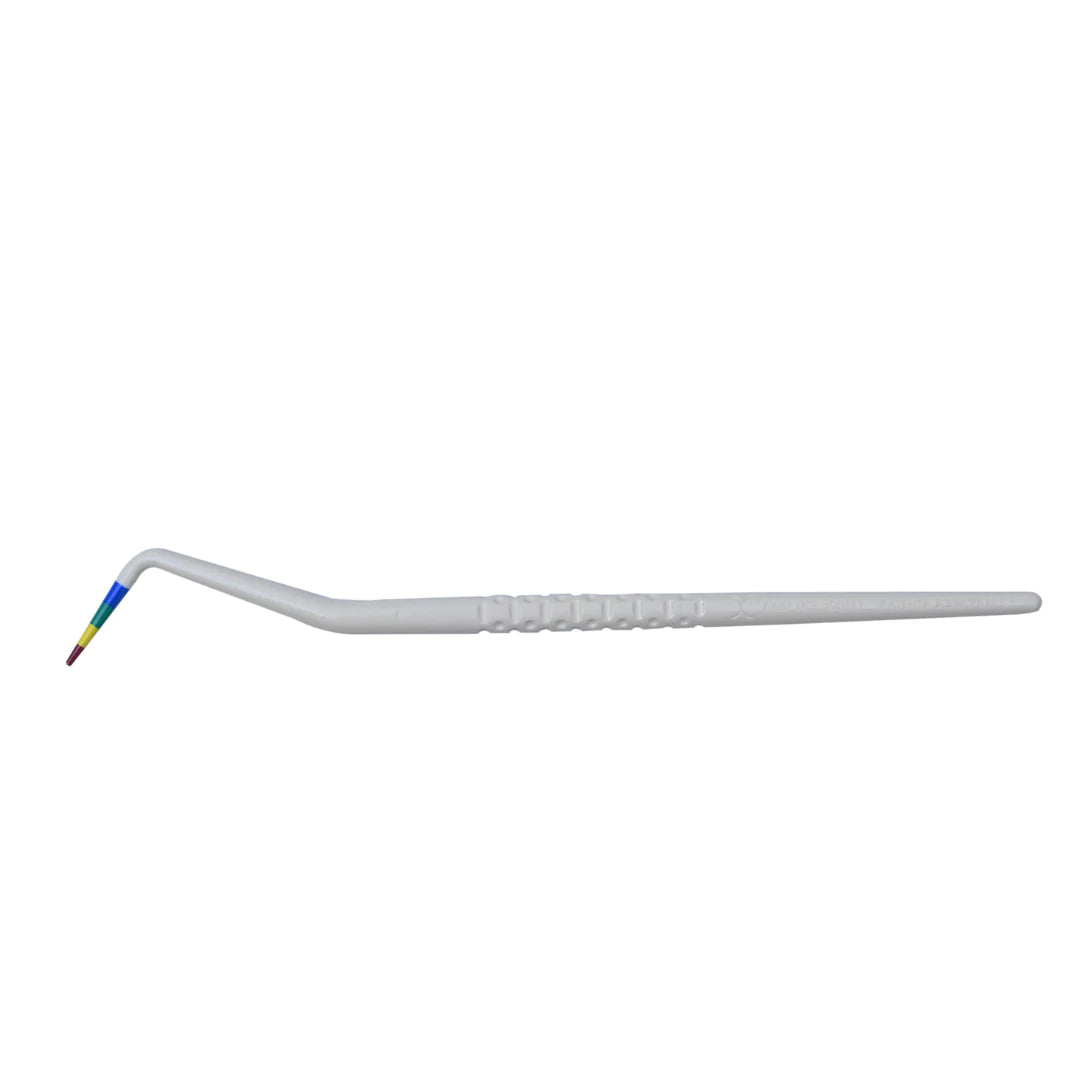

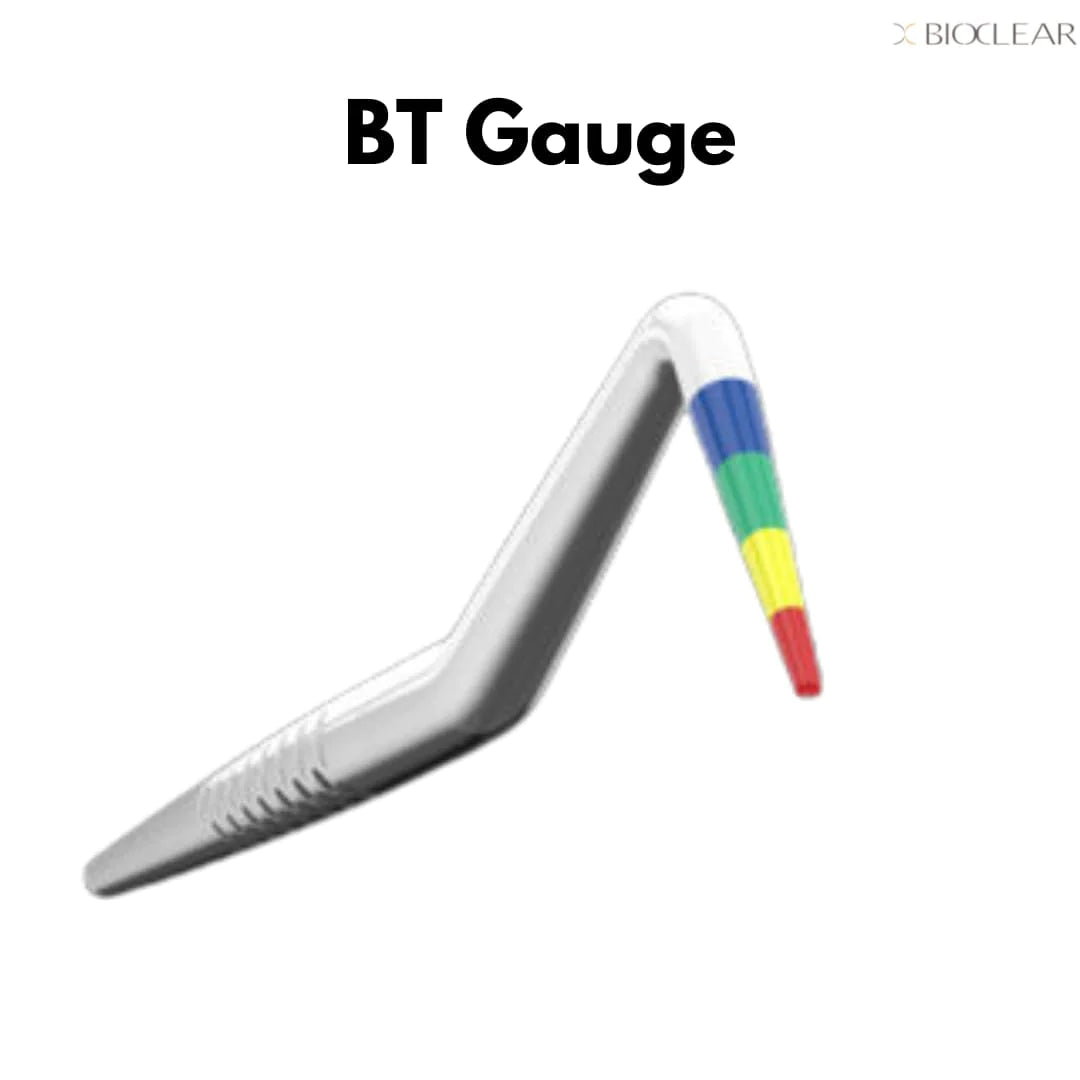

Black Triangle Gauge

The BT Gauge is for use with the new colour-coded BT Matrices. The use of the gauge with these colour-coded matrices is designed to make black triangle closures simpler and more efficient.

Cleaning & Sterilization

1. BT Gauges and TrueContact Saws and Sanders are reusable and autoclavable. Wash with soap and water using a soft brush to remove debris
Note: Do NOT use sprays/wipes, this could damage the BT Gauge.

2. Sterilize using steam sterilizers only on the regular cycle
Note: The temperature of the sterilizer should NOT exceed 270° F/132° C
